Users who prefer to use Navisworks exports from Revit should use the following settings to set up their export.

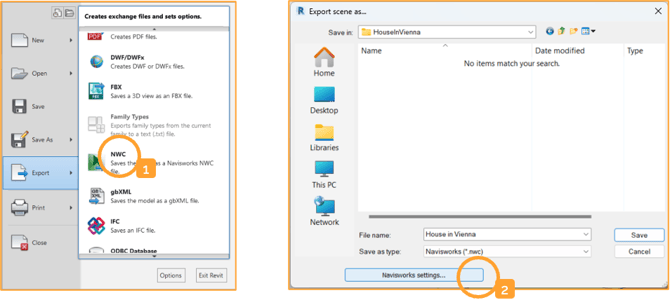

1.Click on Export and then on NWC (1) in the file menu of Revit.
2.In the file dialog, click on Navisworks settings (2).

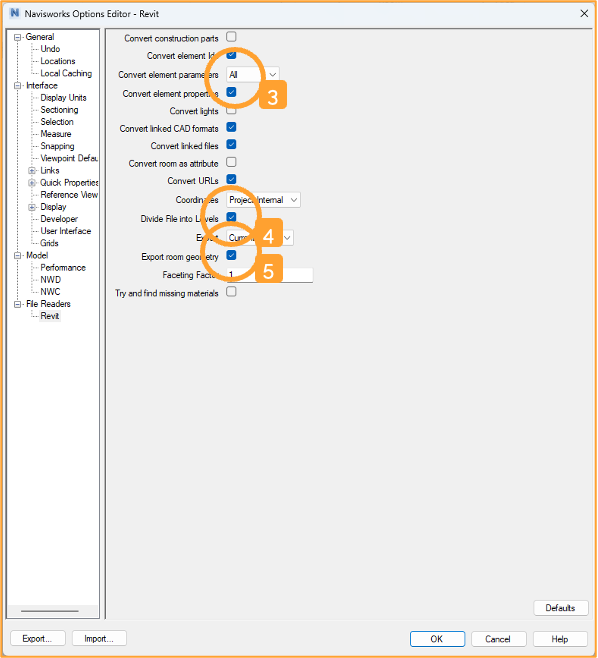

3.In the dropdown of “convert element parameters” choose All (3), to include all data.
4.Activate divide file into Levels (4) and export room geometry (5).
5.Ensure export settings for coordinates are set similarly for all files in the project.
6.Upload to BIM360 or ACC.
